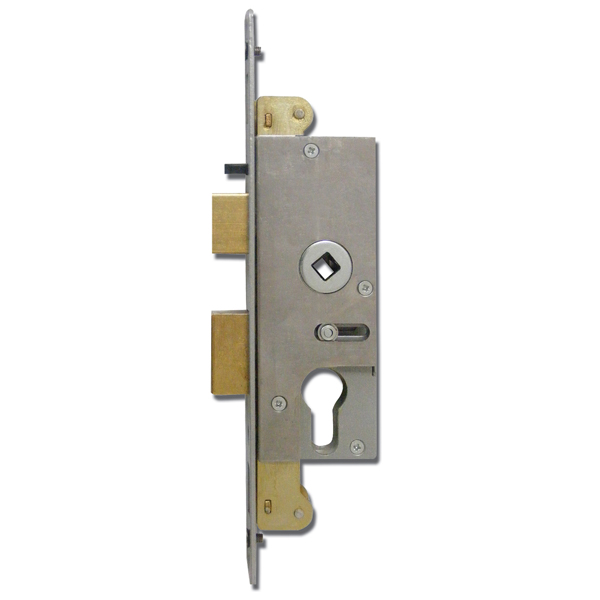

Any Questions? or Tell a friend about this! 		YALE L22180 Sashcase - 50mm Satin Chrome - L22180
Yale Logo

Features:

  • Special spindle required to operate lock (To order only)
  • Reversible Latch Bolt
  • Shoot kit must be ordered separately
  • Anti-thrust snib
  • 24mm double throw deadbolt
  • Supplied without faceplate

More Information:

  • Centre Case: Latch & Deadbolt
  • Mechanism: Euro Cylinder
  • Case Finish: Silver Enamelled
  • Finish: Satin Chrome
  • Forend Finish: Satin Chrome
  • Boxed Quantity: 10
  • Brand: Yale
  • Operation: C - One full turn of the key to lock and one full turn of the key then push down on the lever to unlock, latch bolt can also be withdrawn by key.
  • Pack Quantity: 1
  • Packaging: Boxed

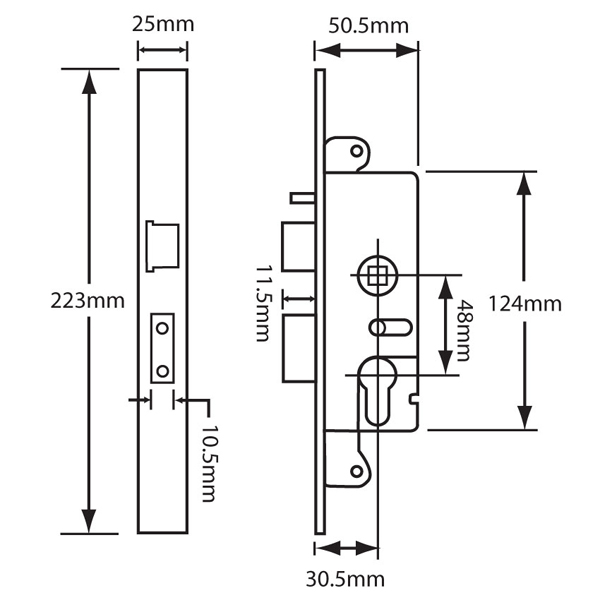

  • Backset: 30.5mm
  • Case Depth: 50mm
  • Case Height: 124mm
  • Centres: 48mm
  • Faceplate Width: 25mm
  • Follower: 8mm
  • Forend Length: 223mm
  • Forend Width: 25mm
  • Spindle: Single
  • Weight: 610g

Preview: YALE L22180 Sashcase - 50mm Satin Chrome - L22180

More Picture(s) 1

More Picture(s) 2

More Picture(s) 3

Product Code: SALD-L8499

MPN: L22180

Other Types & Accessories:

Availability: In stock
Only £62.30 incl VAT.

Delivery available to UK/Europe

Please contact us for any query's regarding key cutting, cut to code, programming, or lost key's situations.
