Any Questions? or Tell a friend about this! 		YALE L22172 Sashcase - 56mm Satin Chrome - L22172
Yale Logo

Features:

  • Special spindle required to operate lock (To order only)
  • Euro profile sash case
  • Shoot kit must be ordered separately
  • Reversible Latch Bolt
  • 24mm double throw deadbolt
  • Supplied without faceplate

More Information:

  • Centre Case: Latch & Deadbolt
  • Mechanism: Euro Cylinder
  • Case Finish: Silver Enamelled
  • Finish: Satin Chrome
  • Forend Finish: Satin Chrome
  • Boxed Quantity: 10
  • Brand: Yale
  • Operation: C - One full turn of the key to lock and one full turn of the key then push down on the lever to unlock, latch bolt can also be withdrawn by key.
  • Pack Quantity: 1
  • Packaging: Boxed

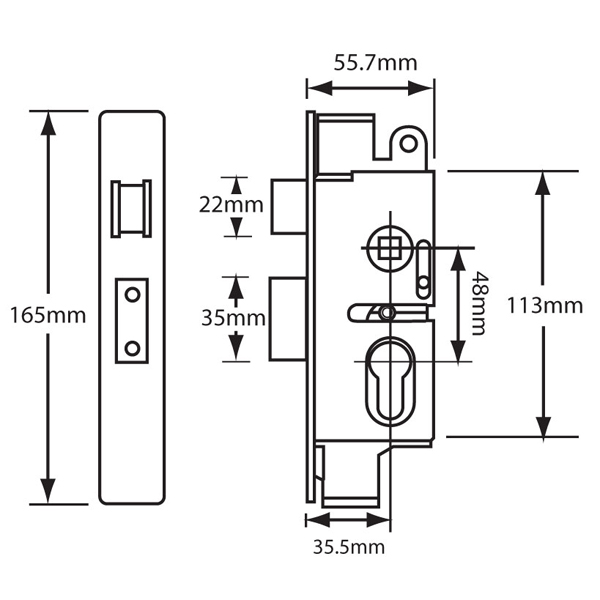

  • Backset: 36mm
  • Bolt Throw: 24mm (Double Throw)
  • Case Depth: 56mm
  • Case Height: 116mm
  • Centres: 48mm
  • Follower: 8mm
  • Forend Length: 166mm
  • Forend Width: 36mm
  • Spindle: Single
  • Weight: 650g

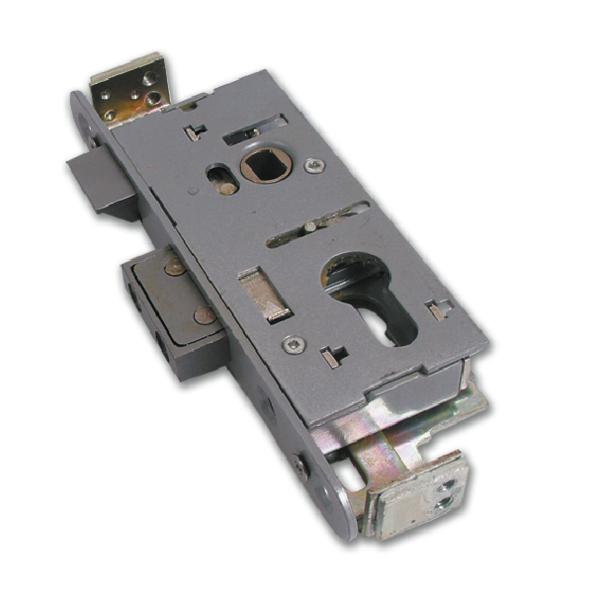

Preview: YALE L22172 Sashcase - 56mm Satin Chrome - L22172

More Picture(s) 1

More Picture(s) 2

More Picture(s) 3

Product Code: SALD-L8500

MPN: L22172

Other Types & Accessories:

Availability: In stock
Only £86.03 incl VAT.
