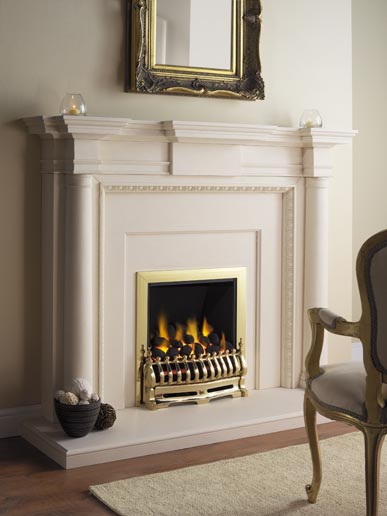

The XL10 has an air of majestic quality that you would typically expect with a traditiional fire piece. A striking focal point to any room it is designed to complement a larger fireplace opening. The extra width of the opening creates a breathtaking coal effect fuelbed that is capable of generating a staggering 4.8kW heat output. The beautiful solid brass Blenheim fret has been chosen to complete the traditiional aesthetic.

Due to to the XL10's increased size and output, 8 cm2 of purpose provided ventilation is required.

A truly hot fire with powerful heat output the XL10 takes full advantage of a Class 1 chimney. A discretely mounted control knob is positioned behind the ashpan which is cast from solid brass to highlight the detail and attention to design.

Specifications
Fire Type Full Depth Radiant - 20"
Chimney/Flue Requirements Conventional chimney
Pre-fabricated flue (min.7")

Efficiency 55%
Control Type Manual - Rotary
Heat Input (Max/Min) Gross 8.8kW / 3.5kW
Heat Output (Max/Min) Gross 4.8kW / 1.9kW
Running Costs Per Hour (Max/Min)* 21.0p / 8.4p
Outline Dimensions** W560 x H590 x D180 (mm)
Installation Inset - Fireplace
Air Vent Required 8cm2
Safety Oxygen Depletion Sensor
Flame Failure Device

Options Available in chrome
* Price based on 2.4p/kWh. Gas prices may vary. Please check with your supplier.

** Please refer to Technical specification for more product information.
